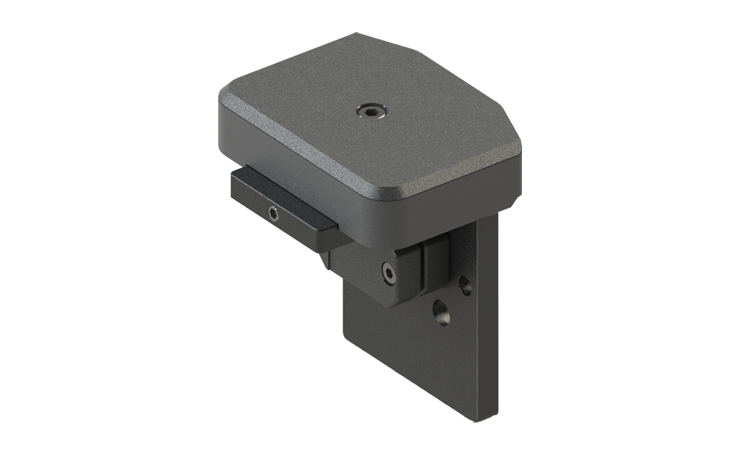

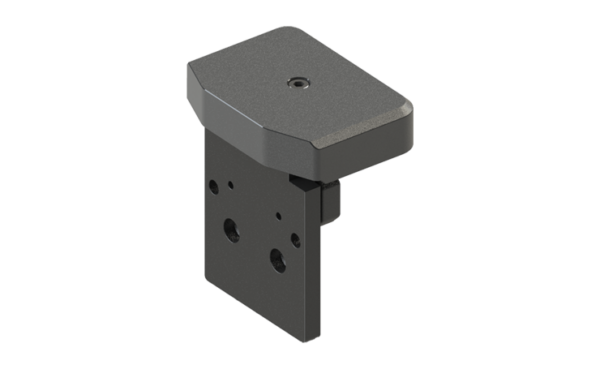

ASW Rocker

Home>Products>Position detection>ASW Rocker

Position detection ASW

Technical data

APPLICATION

For area monitoring and workpiece carrier detection.
For the use of an inductive sensor M12x1.
When a workpiece carrier is in contact with the ASW, the inductive sensor is actuated.
The position query ASW cannot be used as a stop for workpiece carriers arriving from transverse conveyor. In addition, a stop or damper must be installed to absorb the impact impulse corresponding to the workpiece carrier weight.

TYPE

Compact design
Operating area: 40 mm
Query body of POM in black.
The query body is pushed into the un-actuated position by a spring.
Mounting bracket made of aluminum.

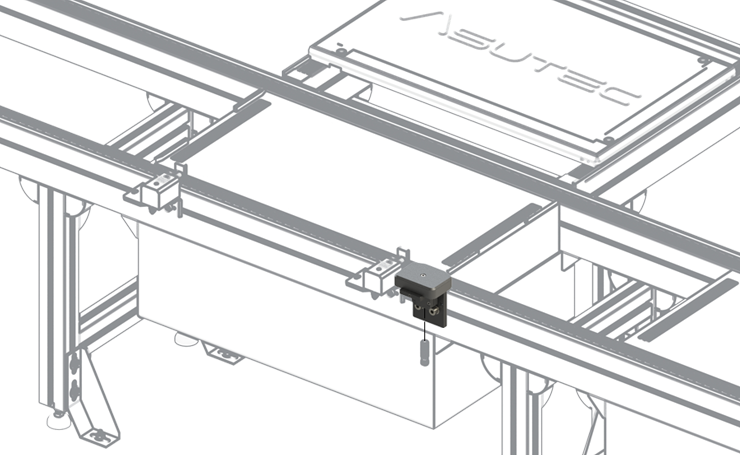

FITTING POSITION

Mounting on the outer groove of the section profile for a lateral query of the workpiece carrier position.

SCOPE OF SUPPLY

Without inductive sensor and without accessories

Variants

No items found

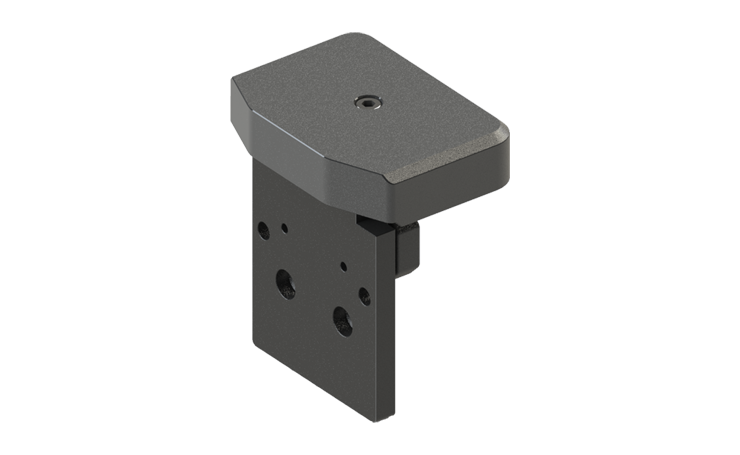

ASW

For area monitoring and workpiece carrier detection.
Mounting on the outer groove of the section profile for a lateral query of the workpiece carrier position.

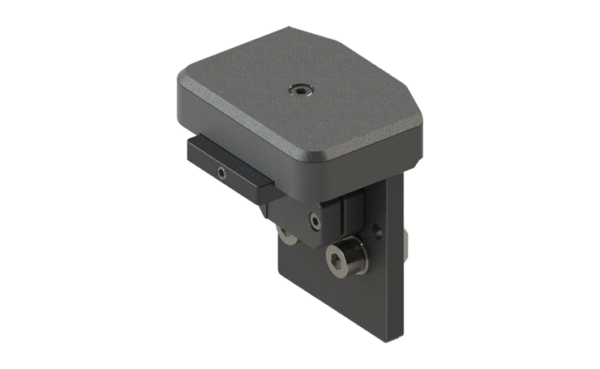

ASW-150

For area monitoring and workpiece carrier detection.
Mounting on the outer groove of the section profile for a lateral query of the workpiece carrier position.
With fastening set 75000019
