Return stop ASR

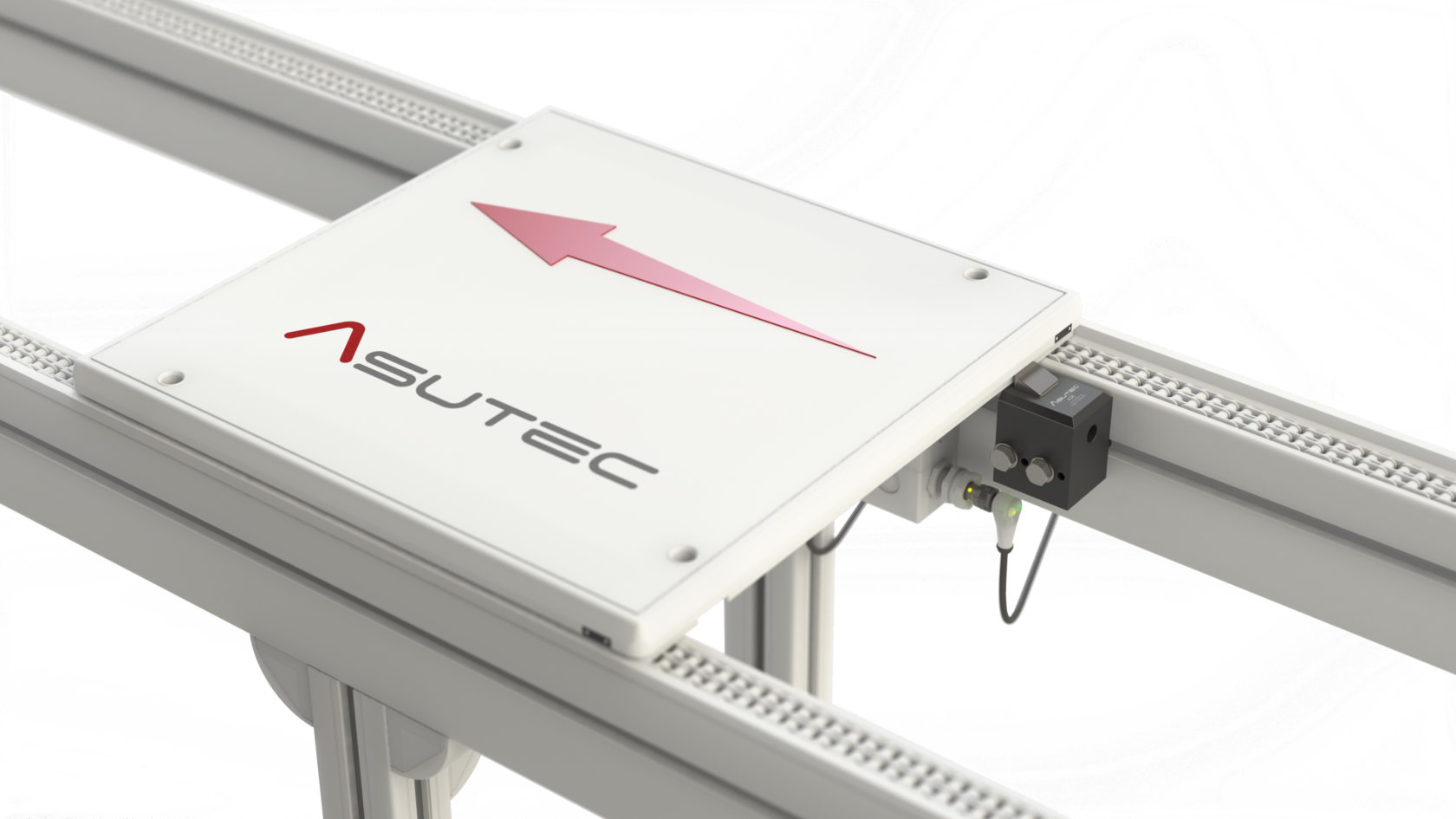

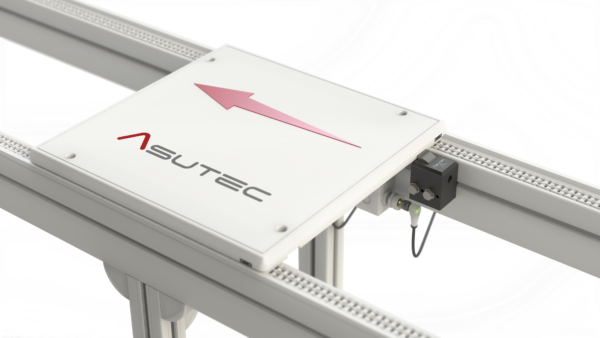

Retrun stops prevent the workpiece carrier from bouncing back when stopping. The use of a backstop is always recommended when workpiece carriers are transported on a transfer system with low propulsive force. This is always the case, for example, with the accumulating roller chain as a conveying medium. The use of backstops is highly recommended at high transport speeds. Because the backstop “locks” or positions the workpiece carrier, a cycle time reduction can also be achieved.

Technical data

Type

Housing hard-anodized aluminium.
Stop hardened steel.
Minimum workpiece carrier weight: 3 kg
Maximum workpiece carrier weight: 1200 kg

SPRING FORCE

upper position: 2,2 N
lower position: 9,1 N

Functional scheme

Lowering: Only due to the workpiece carrier while crossing
close: via spring force
https://www.asutec.de/wp-content/uploads/2023/06/38-asr.png

SCOPE OF SUPPLY

The items will be delivered without accessories.
Accessories can be freely selected according to the ambient conditions.
All supplied accessory parts are mounted by customer request.

MAINTENANCE

No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.

Variants

No items found

ASR

Return stop for workpiece carriers with minimum weight of 3 kg

ASR-100

Return stop for workpiece carriers with minimum weight of 3 kg
Delivery including fastening set 75000000

ASR-102

Return stop for workpiece carriers with minimum weight of 3 kg
Suitable for Bosch Rexroth workpiece carrier WT 2/H and WT 2/F
Delivery including fastening set and distance block
Identical to the Bosch Rexroth Return stop VE 4/RS

ASR-I

Return stop for workpiece carriers with minimum weight of 3 kg
Advanced version with mounting option for inductive proximity switch
Also suitable for lowering the return stop by hand

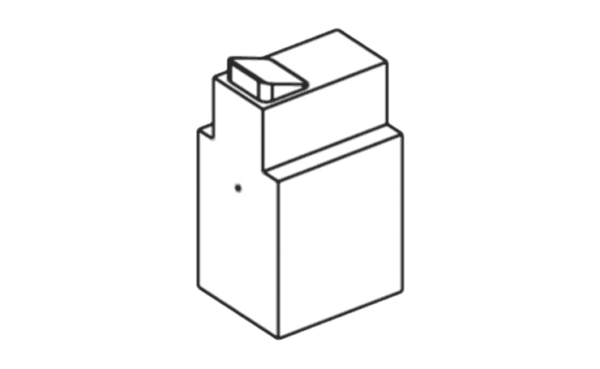

ASR-002

Return stop for workpiece carriers with minimum weight of 3 kg
Advanced version with slim top housing.
For fastening from below
