Positioning unit ASP-1050
The positioning unit ASP-1050 is made for positioning and, if necessary, lifting out workpiece carriers at a processing station. Different location bolts can be used.
The designation of the positioning units indicates the lifting force in N at 6 bar pneumatic pressure and the stroke in mm.
The respective standard stroke (31 mm) can easily be reduced with internal stroke limitation rings.
With the installed stoke limitation, the lowered position usually remains unchanged - the extended state of the positioning unit is influenced by the stroke limitation.
Technical data
Type
The positioning units are double acting pneumatic cylinders. The basic housing is made of hard-anodized aluminium, the piston rod is made of stainless steel and can be used with various centering bolts.
Query option
ASP-1050
Standard version – upper and lower position can be detected with T-slot magnetic field sensors.
ASP-1050-I
Version “-I” – upper and lower position can be detected with inductive sensor.
Pneumatic connection
Connecting holes: G1/8
Piston diameter: Ø50 mm
Piston rod diameter: Ø20 mm
Distance A
The distance dimension A is the distance from the screw-on surface to the positioning pin.
For ASP-1050: A = 33 mm
Functional scheme
Double acting: The pneumatic cylinder can be moved by pneumatic pressure.
Temperature range
+5°C up to +60°C
Variants
ASP-1050-31
1050 N piston force and 31 mm stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

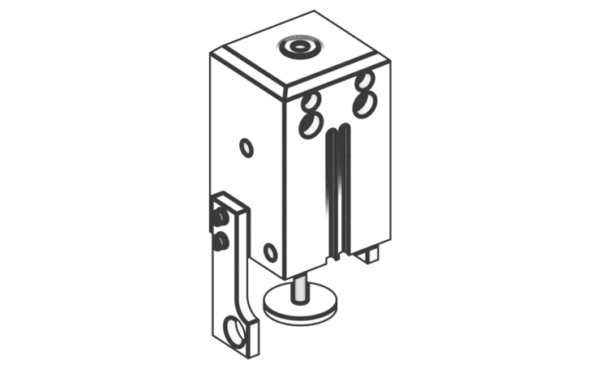

ASP-1050-31-I
1050 N piston force and 31 mm stroke
Option to query the upper and lowered position with inductive sensors
