Home>Products>Stop modules>Stop modules - High Speed>ASMHS-60

Stop module with damping ASMHS-60

For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.
Ideal for medium-sized transfer systems such as Bosch Rexroth TS2.

Technical data

TYPE

One of our top seller with an attractive price-performance ratio.
Variants with 8 mm and 13 mm lowering stroke available in many variants.
Suitable for various systems and applications.

INSTALLATION

The stop module is fastened using the side mounting holes for M8 screws.

DAMPING

Adjustable air damping
Damping stroke: 30 mm

PRODUCT WEIGHT

ASMHS-60-EW-08: 0,53 kg
ASMHS-60-EW-08-I: 0,69 kg
ASMHS-60-EW-08-E: 0,55 kg
ASMHS-60-EW-08-S: 0,55 kg
ASMHS-60-DW-08: 0,65 kg
ASMHS-60-EW-13: 0,59 kg
Further product weights are specified in the operating manual.

PROPULSIVE FORCE

In order to ensure a perfect lowering movement of the stop module, the following propulsive forces must not be exceeded: FRmax = 96,2 N
In order to ensure that the stop plate reaches the damping end position, the following minimum propulsive forces must not be less
than: FRmin = 0,68 N

FUNCTION

The pneumatic stop modules ASMHS-60 are stop modules with damping.
If a workpiece carrier strikes against the stop plate of the stop module, the air chamber is compressed and the compressed air escapes through the opening gap of the throttle screw. Thus, the workpiece carrier is gently damped to a stop.
The damping is with air and can be finely adjusted via a throttle screw.
If the workpiece carrier will be damped, the stop plate will be pushed in.
The stop plate will stay in this position. There are no forces that would try to move the stop plate even the workpiece pallet is not pushing against the stop plate.
The extension of the stop plate is effected by an internal valve control in the stop module, when lowering, when the stop module has reached the lower position.

FUNCTION EW

EW (single-acting): The lowering of the stop module is done by pneumatic pressure.
When the stop module has reached the lowered position, then the stop-damping-piston is automatically extended.
In the unpressurized state, the stop module moves upwards into the blocking position by a spring and the next workpiece carriers can be stopped.
https://www.asutec.de/wp-content/uploads/2023/06/7-asm-60-ew.png

FUNCTION DW

DW (double-acting): The lowering and raising of the stop module is done by pneumatic pressure.
When the stop module has reached the lowered position, then the stop-damping-piston is automatically extended.
In unpressurized state the stop module keeps his last reached position. The stop module has no spring. This increases the lowering force.
https://www.asutec.de/wp-content/uploads/2023/06/8-asm-60-dw.png

TEMPERATURE RANGE

Standard version: -20°C to +80°C
-H = Heat resistant -20°C to +180°C
-E = Version with „-E’-query: +5°C to +60°C

PNEUMATIC CONNECTION

M5 on the back and front.

FURTHER TECHNICAL INFORMATION

See „Data sheet / operating manual’
in the ‘Downloads’ area

Variants

No items found

ASMHS-60-EW-08

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke

ASMHS-60-EW-08-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-08-H

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Heat resistant up to 180°C

ASMHS-60-EW-08-I

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

ASMHS-60-EW-08-I-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-08-E

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASMHS-60-EW-08-E-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-08-KU

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
With plastic stop plate

ASMHS-60-EW-08-KI

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
With tilt stop

ASMHS-60-EW-08-S

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 8 mm lowering stroke
“S” Sensing option: Possibility to query the retracted stop plate position with the aid of inductive sensors 8×8

ASMHS-60-DW-08

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke

ASMHS-60-DW-08-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Delivery including fastening set 75000001 and two air connectors 14010004

ASMHS-60-DW-08-H

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Heat resistant up to 180°C

ASMHS-60-DW-08-I

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

ASMHS-60-DW-08-I-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and two air connectors 14010004

ASMHS-60-DW-08-E

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASMHS-60-DW-08-E-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including fastening set 75000001 and two air connectors 14010004

ASMHS-60-DW-08-KU

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
With plastic stop plate

ASMHS-60-DW-08-KI

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
With tilt stop

ASMHS-60-DW-08-S

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 8 mm lowering stroke
“S” Sensing option: Possibility to query the retracted stop plate position with the aid of inductive sensors 8×8

ASMHS-60-EW-13

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function,13 mm lowering stroke

ASMHS-60-EW-13-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-13-H

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Heat resistant up to 180°C

ASMHS-60-EW-13-I

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

ASMHS-60-EW-13-I-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-13-E

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASMHS-60-EW-13-E-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including fastening set 75000001 and air connector 14010004

ASMHS-60-EW-13-KU

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
With plastic stop plate

ASMHS-60-EW-13-S

Stop module with 30mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Single acting function, 13 mm lowering stroke
“S” Sensing option: Possibility to query the retracted stop plate position with the aid of inductive sensors 8×8

ASMHS-60-DW-13

Stop module with 30mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke

ASMHS-60-DW-13-100

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
Delivery including fastening set 75000001 and two air connectors 14010004

ASMHS-60-DW-13-H

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
Heat resistant up to 180°C

ASMHS-60-DW-13-I

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

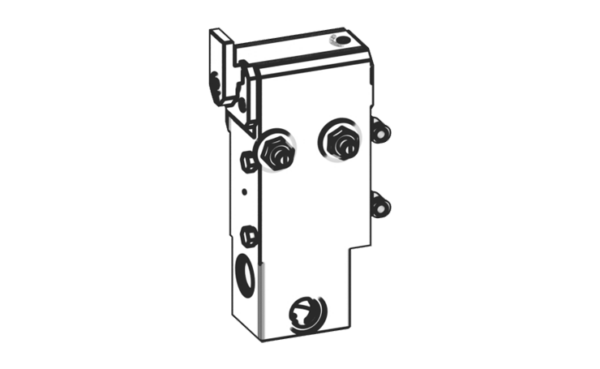

ASMHS-60-DW-13-I-100

Stop module with 30mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and two air connectors 14010004

ASMHS-60-DW-13-E

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASMHS-60-DW-13-KU

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
With plastic stop plate

ASMHS-60-DW-13-S

Stop module with 30 mm damping stroke for workpiece carrier load from 1 kg up to 70 kg
Double acting function, 13 mm lowering stroke
“S” Sensing option: Possibility to query the retracted stop plate position with the aid of inductive sensors 8×8
