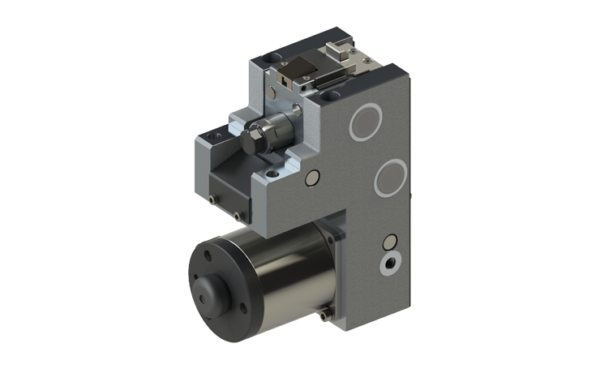

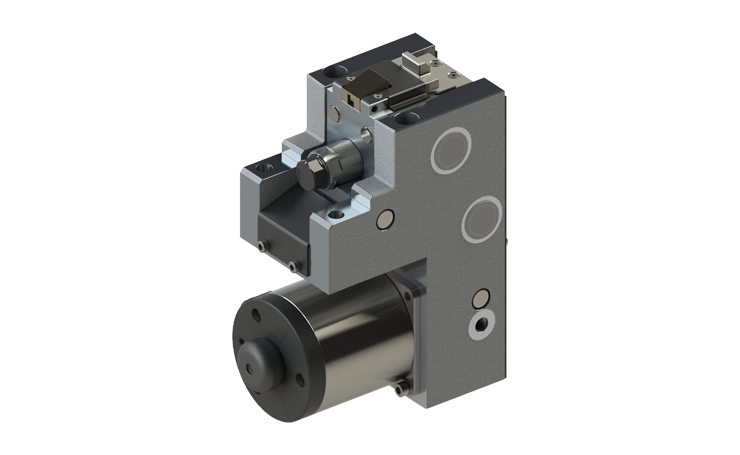

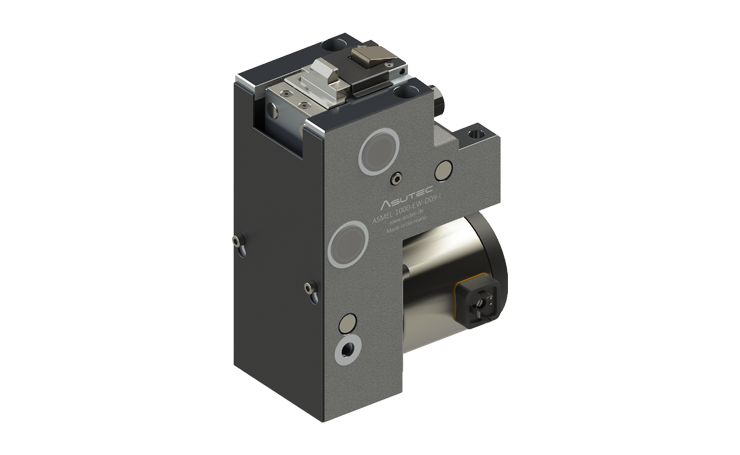

Stop module with damping ASMEL-1000
For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.
Technical data
TYPE
Electrical separating stop with self-adjusting damping unit
Aluminum basic housing
Stop plate made from hardened steel
Optimal damping of workpiece pallets up to a mass of 1000 kg
APPLICATION
Stopping, separating and damping of one or more accumulated
workpiece carriers at a defined workpiece carrier stop surface or at the
workpiece directly.
MAXIMUM RAM PRESSURE
Dependent of:
– the friction between piece carrier and the transfer system.
– the friction between work piece carrier and the stop plate.
– the position of the work piece carrier stop surface.
– the ambient conditions (dust).
ELECTRICAL DATA
Voltage: 24 VDC
Duty cycle: 100%
Current consumption: 1.82 A
TEMPERATURE RANGE
+5°C up to + 60°C
MAINTENANCE
No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.
