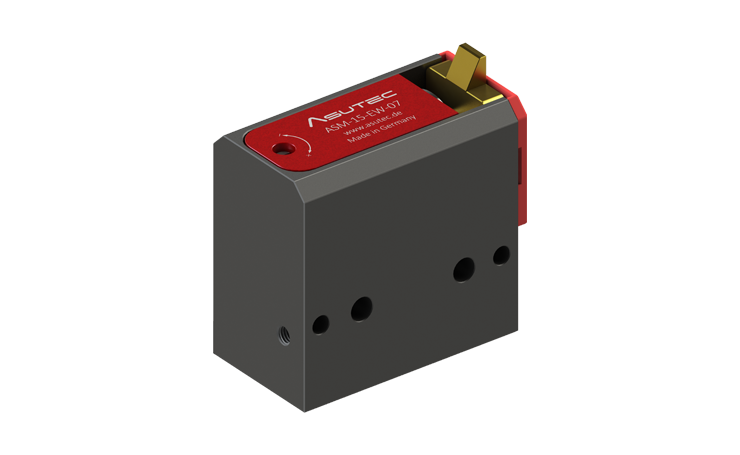

Stop module without damping ASM-15

For stopping and separating of one or more accumulated workpiece carriers a defined workpiece carrier stop surface.

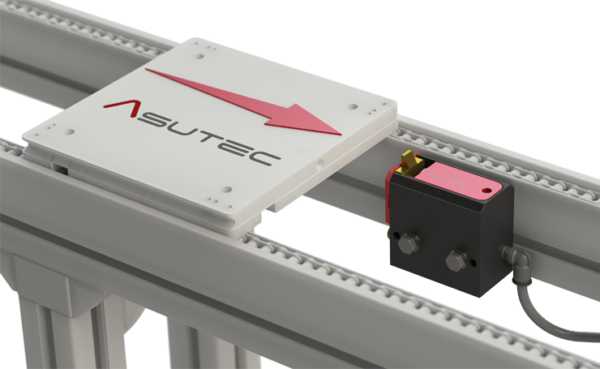

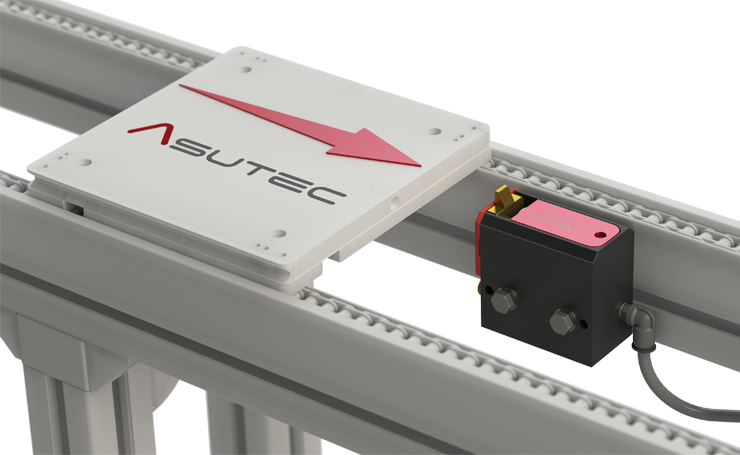

Made for small transfer systems like Bosch Rexroth TS1.

Technical data

TYPE

Narrow Stop Module for small transfer systems like Bosch Rexroth TS 1.

INSTALLATION

The stop module is fastened using the side mounting holes for M6 screws.

DAMPING

Adjustable air damping
Damping stroke: ASM-15: 7 mm

PRODUCT WEIGHT

ASM-15-…-07: 0,35 kg
ASM-15-…-07-E: 0,40 kg

PROPULSIVE FORCE

In order to ensure a perfect lowering movement of the stop module, the following propulsive forces must not be exceeded: FRmax = 20,6 N
In order to ensure that the stop plate reaches the damping end
position, the following minimum propulsive forces must not be less
than FRmin = 0,17 N

FUNCTION

The pneumatic stop modules ASM-15 are stop
modules with damping.
If a workpiece carrier strikes against the stop plate of the stop
module, the air chamber is compressed and the compressed air
escapes through the opening gap of the throttle screw. Thus, the
workpiece carrier is gently damped to a stop.
The damping is with air and can be finely adjusted via a throttle
screw.
If the workpiece carrier will be damped, the stop plate will be
pushed in. The stop plate will stay in this position. There are no
forces that would try to move the stop plate even the workpiece
pallet is not pushing against the stop plate.
The extension of the stop plate is effected by an internal valve
control in the stop module, when lowering, when the stop module
has reached the lower position.

FUNCTION EW

EW (single-acting): The lowering of the stop module is done by pneumatic pressure.
When the stop module has reached the lowered position, then the stop-damping-
piston is automatically extended.
In the unpressurized state, the stop module moves upwards into the blocking position by a spring and the next workpiece carriers can be stopped.
https://www.asutec.de/wp-content/uploads/2023/06/9-asm-100-ew.png

FUNCTION DW

DW (double-acting): The lowering and raising of the stop module is done by pneumatic pressure.
When the stop module has reached the lowered position, then the stop-damping-
piston is automatically extended.
In unpressurized state the stop module keeps his last reached position. The stop module has no spring. This increases the lowering force.
https://www.asutec.de/wp-content/uploads/2023/06/9-asm-100-ew.png

TEMPERATURE RANGE

Standard version: -20°C to +80°C
-H = Heat resistant -20°C to +180°C
-E = Version with „-E’-query: +5°C to +60°C

PNEUMATIC CONNECTION

M5 on the back and front.

FURTHER TECHNICAL INFORMATION

See „Data sheet / operating manual”
in the “Downloads” area

Variants

No items found

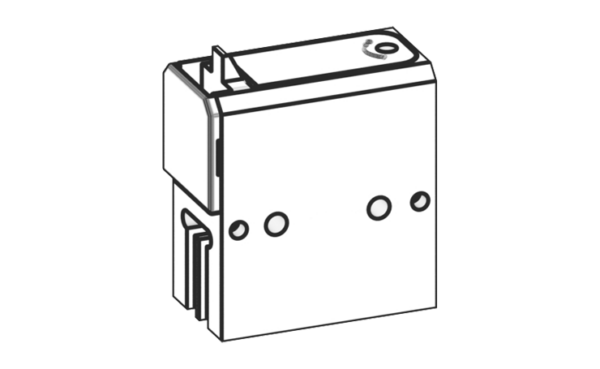

ASM-15-EW-07

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Single acting function, 7 mm lowering stroke

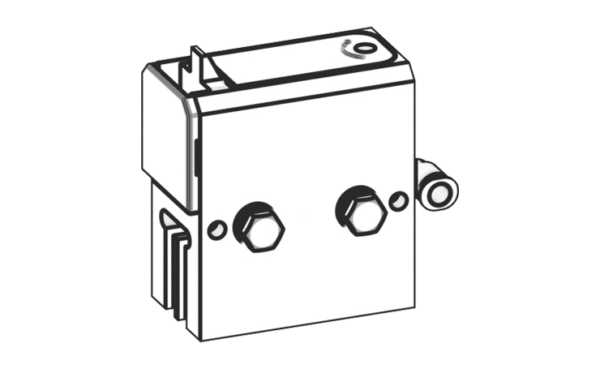

ASM-15-EW-07-100

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Single acting function, 7 mm lowering stroke
Delivery including air connection 14010004 and fastening set 75000004.

ASM-15-EW-07-H

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Single acting function, 7 mm lowering stroke
Heat resistant up to 180°C

ASM-15-EW-07-E

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Single acting function, 7 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASM-15-EW-07-E-100

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Single acting function, 7 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including air connection 14010004 and fastening set 75000004.

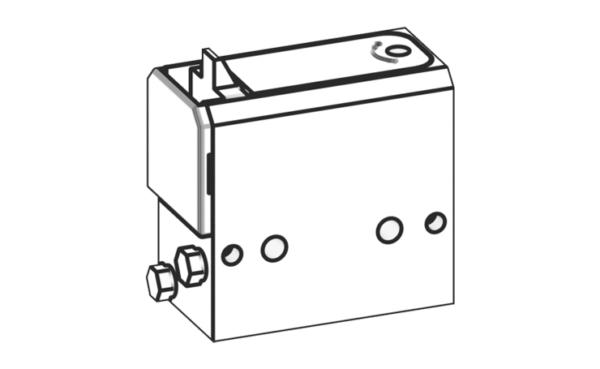

ASM-15-DW-07

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Double acting function, 7 mm lowering stroke

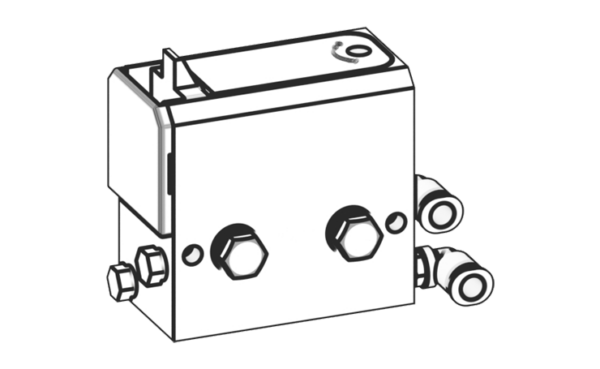

ASM-15-DW-07-100

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Double acting function, 7 mm lowering stroke
Delivery including air connections 14010004 and fastening set 75000004

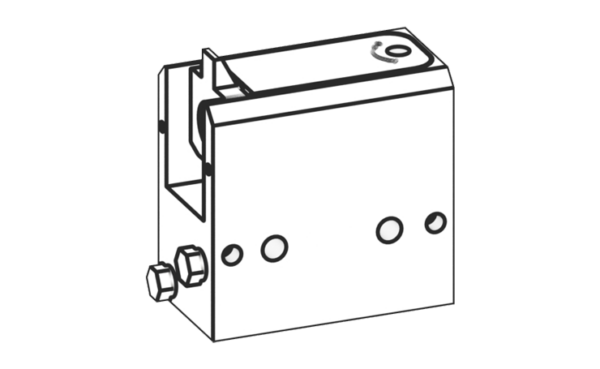

ASM-15-DW-07-H

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Double acting function, 7 mm lowering stroke
Heat resistant up to 180°C

ASM-15-DW-07-E

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Double acting function, 7 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

ASM-15-DW-07-E-100

Stop module with 7 mm damping stroke for workpiece carrier load from 0.25 kg up to 15 kg
Double acting function, 7 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including air connections 14010004 and fastening set 75000004
