For ASGW

Home>Products>Position detection>For ASGW

Position detection For ASGW

For installation on the angle gripper to query the position of the jaws with inductive sensors.

Technical data

APPLICATION

Position query
For installation on the angle gripper to query the position of the jaws with inductive sensors.

TYPE

Sensor bracket made of aluminum, with fixed stop for the sensor.

FITTING POSITION

To the angle gripper ASGW. Please select according to the size

SCOPE OF SUPPLY

Position detection set with fixing screws, as shown below in the variants-section.

Variants

No items found

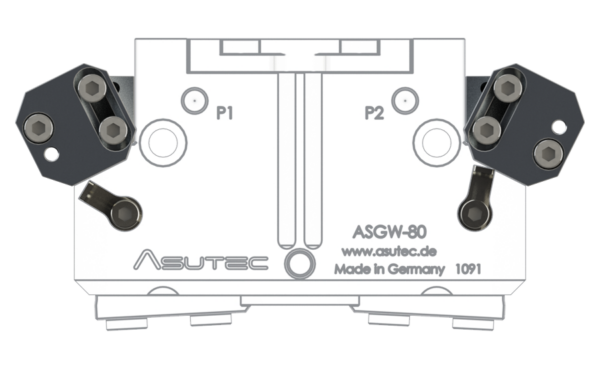

75003024

Position detection for ASGW-80

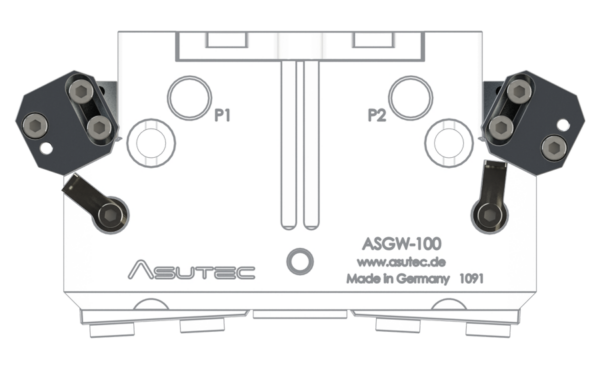

75003025

Position detection for ASGW-100

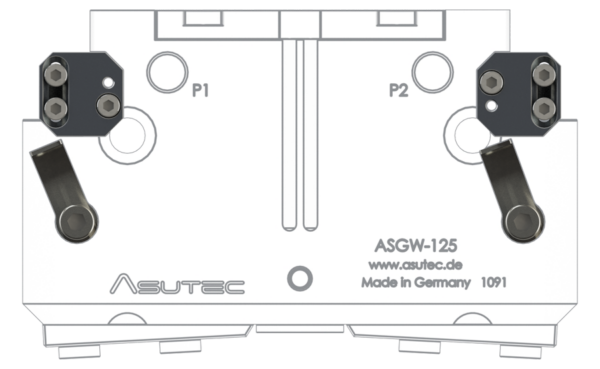

75003026

Position detection for ASGW-125

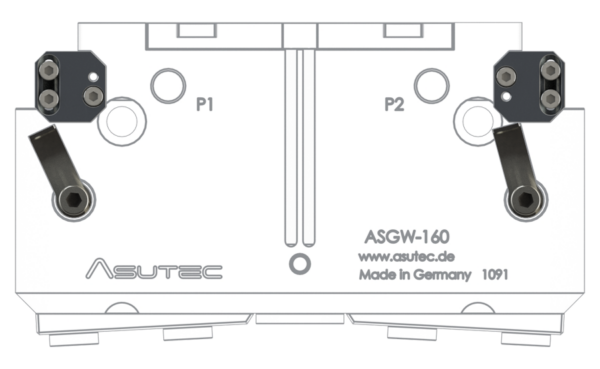

75003027

Position detection for ASGW-160

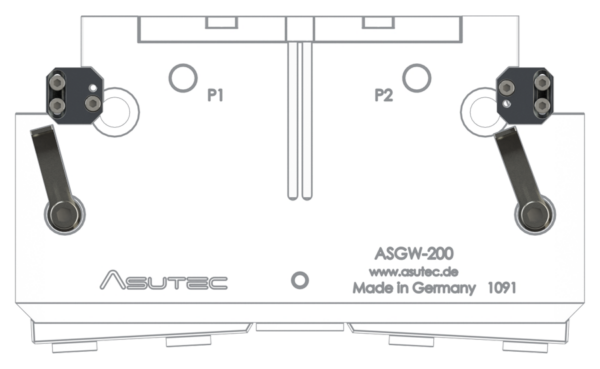

75003028

Position detection for ASGW-200

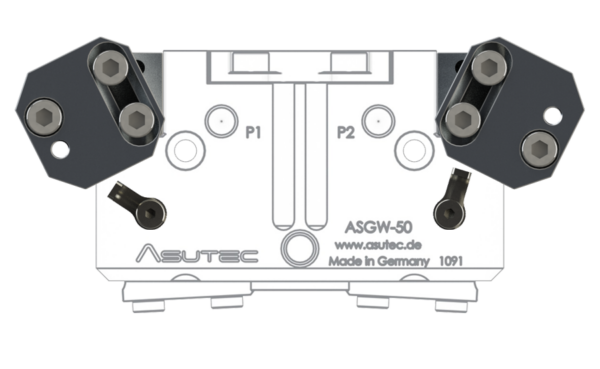

75003022

Position detection for ASGW-50

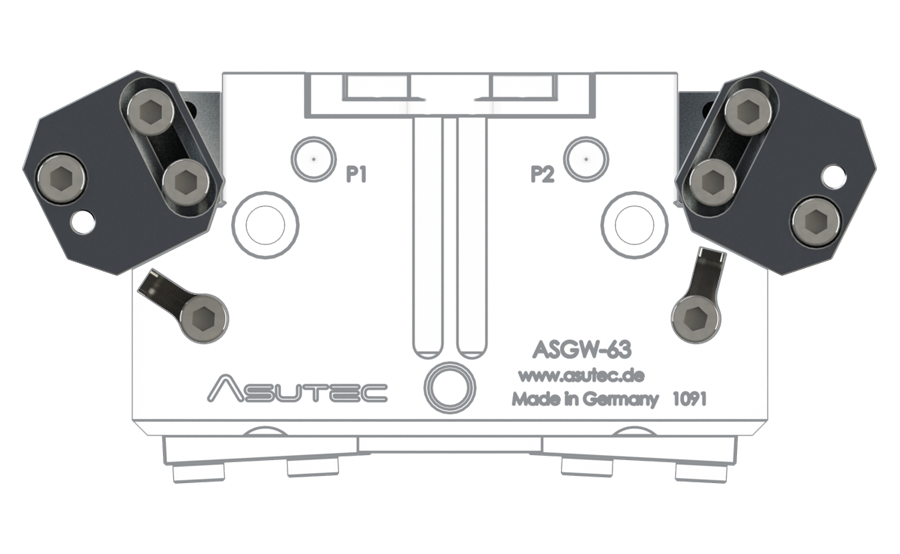

75003023

Position detection for ASGW-63
