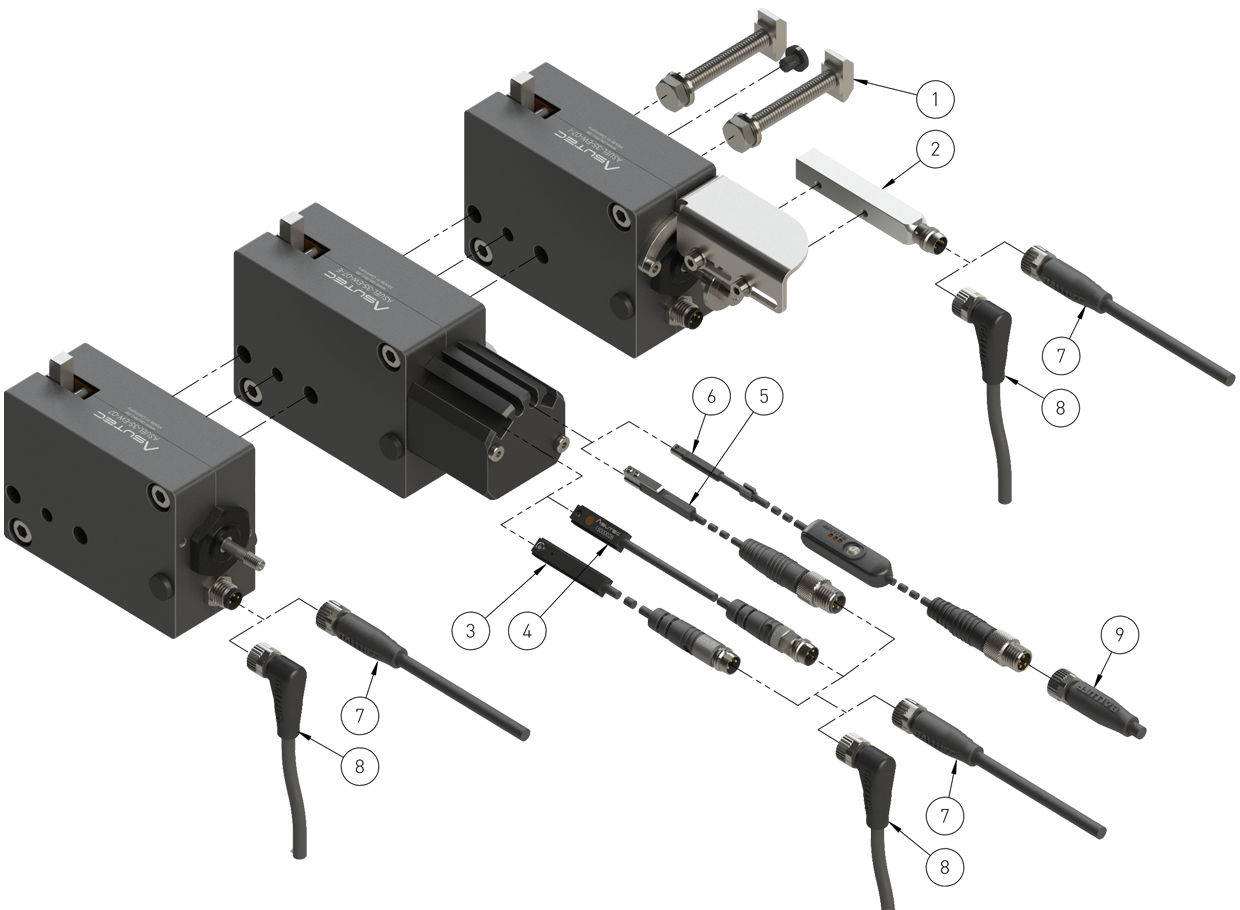

Overview accessories ASUEL-35 – PDF
No items found

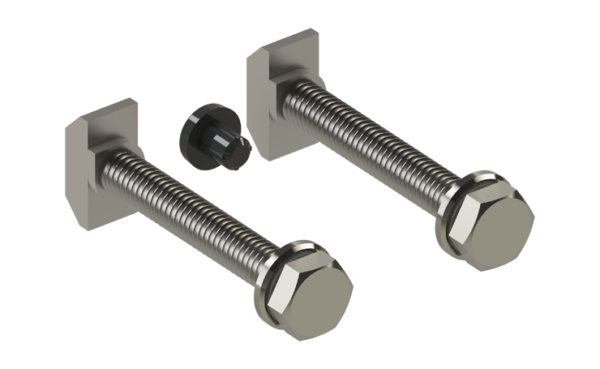

75000138
Fastening set, consisting of screws, hammer nuts, centering bolt.
For 8 mm profile slot
Usually for Asutec devices: ASUEL-35-EW-07
(The second centering pin is already present on both sides of the ASUEL-35-EW-07.)
For 8 mm profile slot
Usually for Asutec devices: ASUEL-35-EW-07
(The second centering pin is already present on both sides of the ASUEL-35-EW-07.)
15000003
Size 8x8; (59 x 8 x 8 mm); Sn = 2 mm; for flush mounting
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000000
For T-slots; 0,3 m cable
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000028
Magnetic field sensor for T-slots; 0,34 m cable
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000034
For C-slots; with mounting bracket; elongated shape; 0,3 m cable
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
Connection: M8x1 connector, 3-pin
Switching output: PNP (NO)
15000038
For C-slots; with teach-in button; elongated shape; 0,3 m cable
Connection: M8x1 connector, 4-pin
Switching output: PNP (NO)
8 switching points in IO-Link mode
Connection: M8x1 connector, 4-pin
Switching output: PNP (NO)
8 switching points in IO-Link mode
15010000
M8x1 female connector, straight,
3-pin, 3-wire, A-coded,
5 m cable lenght
3-pin, 3-wire, A-coded,
5 m cable lenght

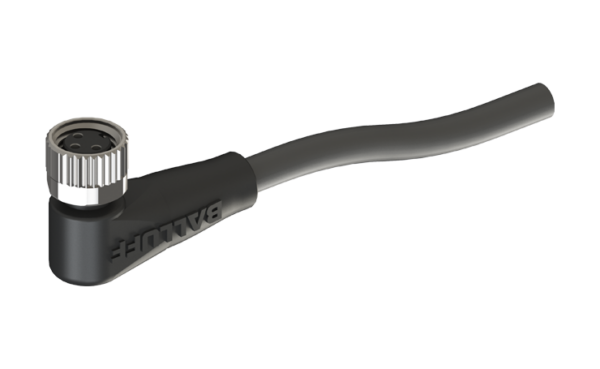

15010020
M8x1 female connector, angled,
3-pin, 3-wire, A-coded,
black, wihtout LED
5 m cable lenght
3-pin, 3-wire, A-coded,
black, wihtout LED
5 m cable lenght
15010009
M8x1 female connector, straight,
4-pin, 4-wire, A-coded,
5 m cable lenght
4-pin, 4-wire, A-coded,
5 m cable lenght
