Stop module with damping ASU-120

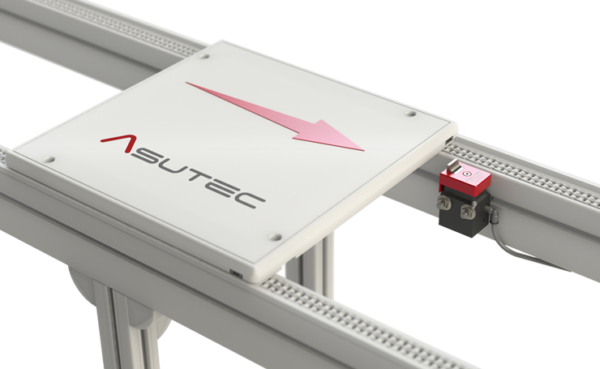

For stopping and separating of one or more accumulated workpiece carriers a defined workpiece carrier stop surface
Technical data
TYPE
Very well protected against dripping liquids. Suitable for use in dirty environments.
Suitable for the Bosch Rexroth TS 2 and many more transfer systems.
PRODUCT WEIGHT
ASU-120-…-09: 0,45 kg
ASU-120-…-09-E: 0,46 kg
ASU-120-…-09-I: 0,61 kg
PROPULSIVE FORCE
In order to ensure a perfect lowering movement of the stop module, the following propulsive forces must not be exceeded:
ASU-120-EW-09(-…): FRmax = 223 N
ASU-120-DW-09(-…): FRmax = 315 N
FUNCTION EW
EW (single-acting): The lowering of the stop module is done by pneumatic pressure.
In the unpressurized state, the stop module moves upwards into the blocking position by a spring and the next workpiece carriers can be stopped.
FUNCTION DW
DW (double-acting): The lowering and raising of the stop module is done by pneumatic pressure.
In unpressurized state the stop module keeps his last reached position. The stop module has no spring. This increases the lowering force.
INSTALLATION
The stop Module is fastened using the side mounting holes for M8 screws.
PNEUMATIC CONNECTION
M5 on the back and front.
TEMPERATURE RANGE
Standard version: -20°C to +80°C
-H = Heat resistant -20°C to +180°C
-E = Version with „-E’-query: +5°C to +60°C
FURTHER TECHNICAL INFORMATION
See „Data sheet / operating manual’
in the ‘Downloads’ area
Too many different variations? - Find the suitable product!
Variants

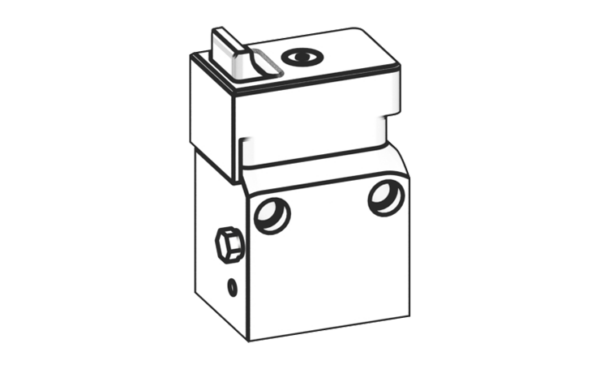

ASU-120-EW-09-H
Single acting function, 9 mm lowering stroke
Heat resistant up to 180°C

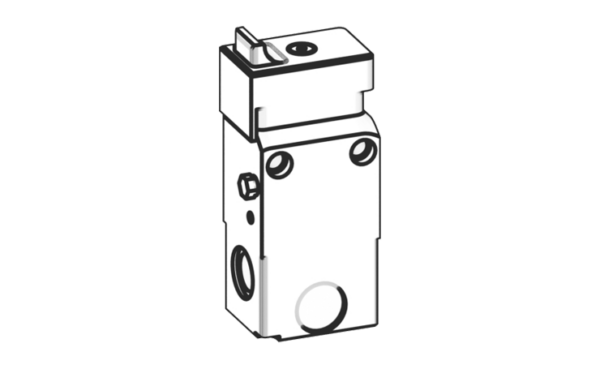

ASU-120-EW-09-I
Single acting function, 9 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

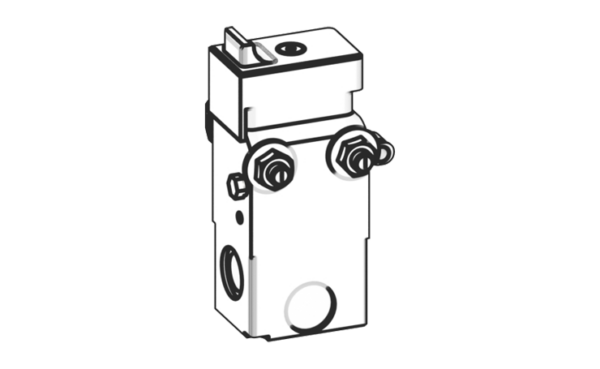

ASU-120-EW-09-I-100
Single acting function, 9 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and air connector 14010004
ASU-120-EW-09-E
Single acting function, 9 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

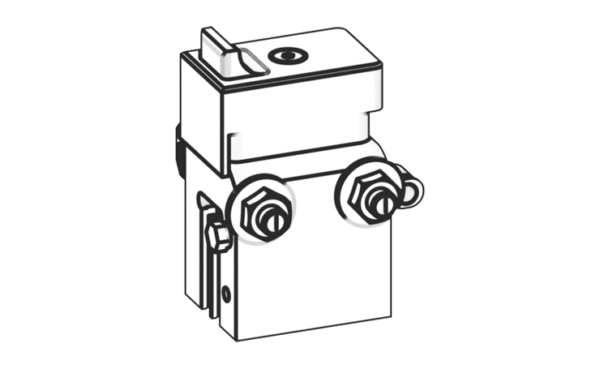

ASU-120-EW-09-E-100
Single acting function, 9 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including fastening set 75000001 and air connector 14010004
ASU-120-DW-09-100
Double acting function, 9 mm lowering stroke
Delivery including fastening set 75000001 and two air connectors 14010004

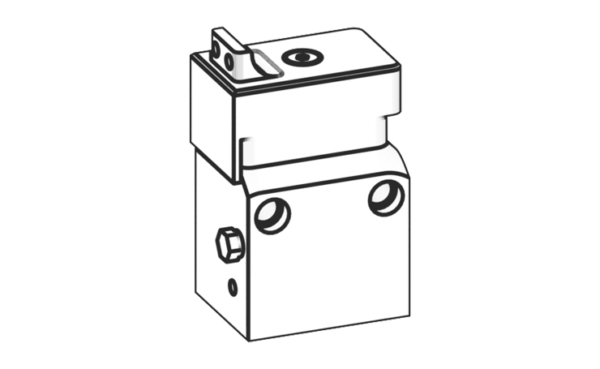

ASU-120-EW-09-G
Single acting function, 9 mm lowering stroke
With tapped holes in the stop plate
ASU-120-DW-09
Double acting function, 9 mm lowering stroke
ASU-120-DW-09-H
Double acting function, 9 mm lowering stroke
Heat resistant up to 180°C

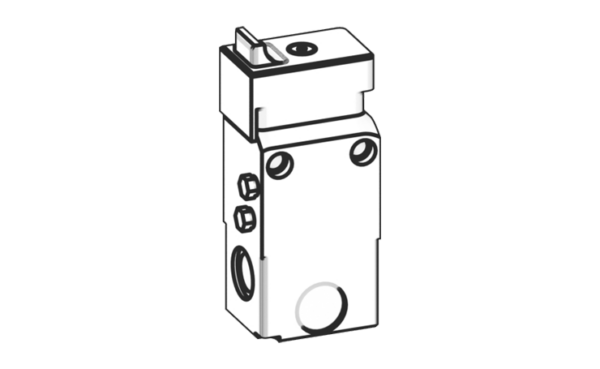

ASU-120-DW-09-I
Double acting function, 9 mm lowering stroke
Option to query the upper and lowered position with inductive sensors

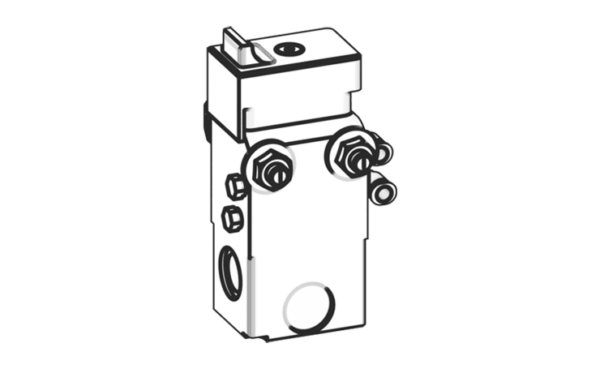

ASU-120-DW-09-I-100
Double acting function, 9 mm lowering stroke
Option to query the upper and lowered position with inductive sensors
Delivery including fastening set 75000001 and two air connectors 14010004

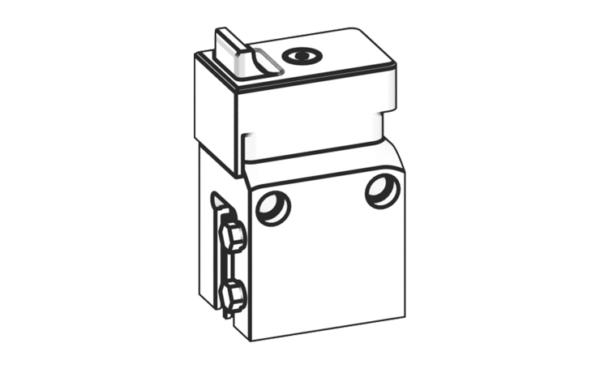

ASU-120-DW-09-E
Double acting function, 9 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors

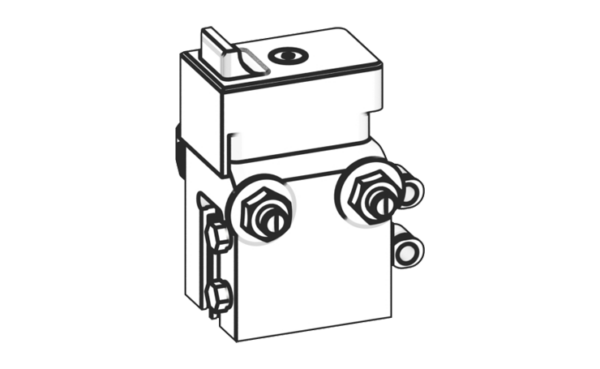

ASU-120-DW-09-E-100
Double acting function, 9 mm lowering stroke
Option to query the upper and lowered position with T-slot magnetic field sensors
Delivery including fastening set 75000001 and two air connectors 14010004

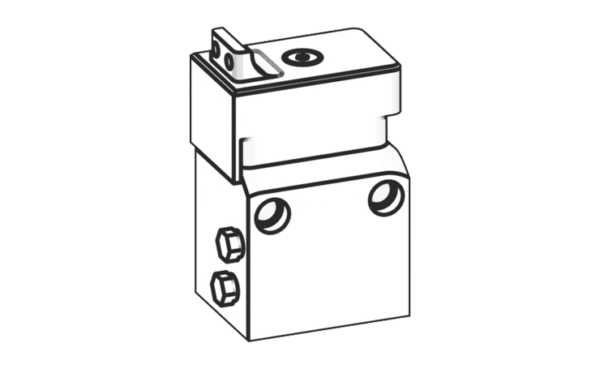

ASU-120-DW-09-G
Double acting function, 9 mm lowering stroke
With tapped holes in the stop plate
ASU-120-EW-09
Single acting function, 9 mm lowering stroke
ASU-120-EW-09-100
Single acting function, 9 mm lowering stroke
Delivery including fastening set 75000001 and air connector 14010004
