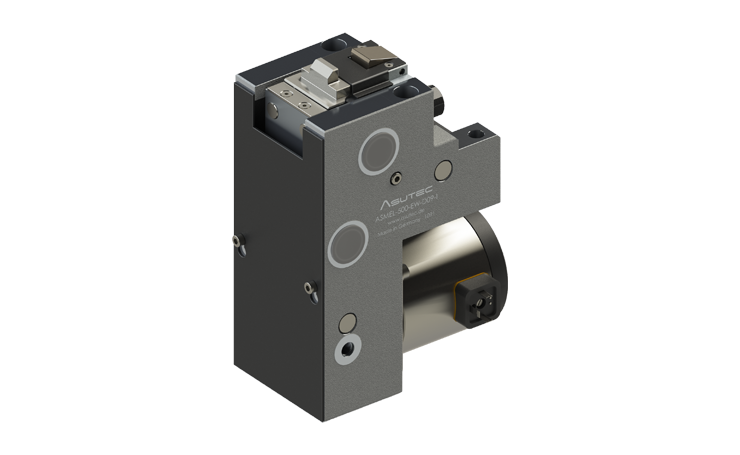

Stop module with damping ASMEL-500

For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.

Technical data

TYPE

Electrical separating stop with self-adjusting damping unit
Aluminum basic housing, hard-anodized
Stop plate made from hardened steel
Optimal damping of workpiece pallets up to a mass of 500 kg

APPLICATION

Stopping, separating and damping of one or more accumulated
workpiece carriers at a defined workpiece carrier stop surface or at the
workpiece directly.

MAXIMUM RAM PRESSURE

Dependent of:
– the friction between piece carrier and the transfer system.
– the friction between work piece carrier and the stop plate.
– the position of the work piece carrier stop surface.
– the ambient conditions (dust).

ELECTRICAL DATA

Voltage: 24 VDC
Duty cycle: 100%
Current consumption: 1.82 A

TEMPERATURE RANGE

+5°C up to + 60°C

MAINTENANCE

No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.

Variants

No items found

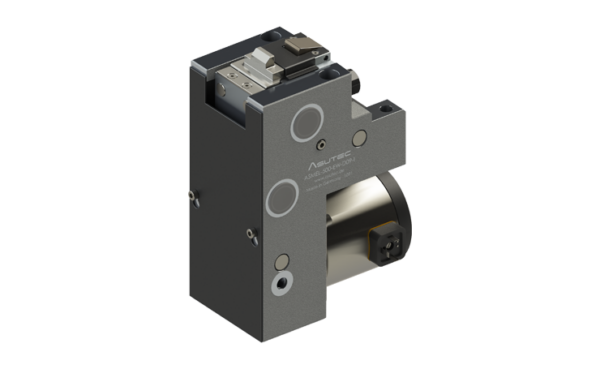

ASMEL-500-EW-D09-I

Stop module with damping for workpiece carrier loads from 45 kg up to 500 kg
Single-acting function, by a single stroke control solenoid
9 mm lowering stroke via swivel joint
Query for upper position with inductive sensor
Query for stop plate in damped position with inductive sensor
Connection with rectangular connector
