Home>Products>Stop modules>Stop modules with damping>Stop modules with damping el>ASMEL-20

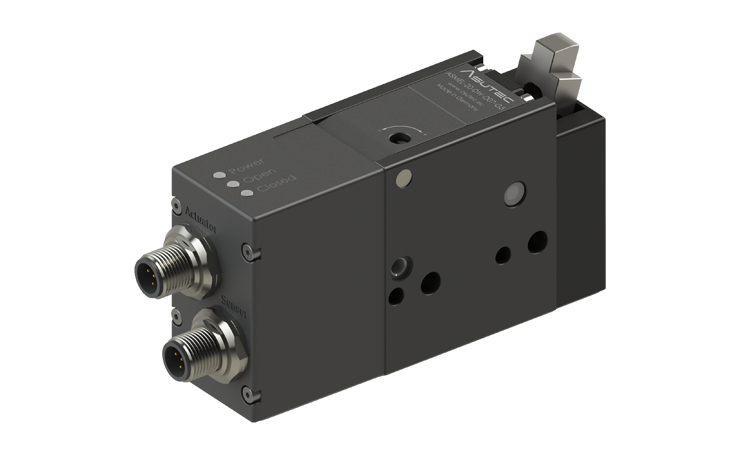

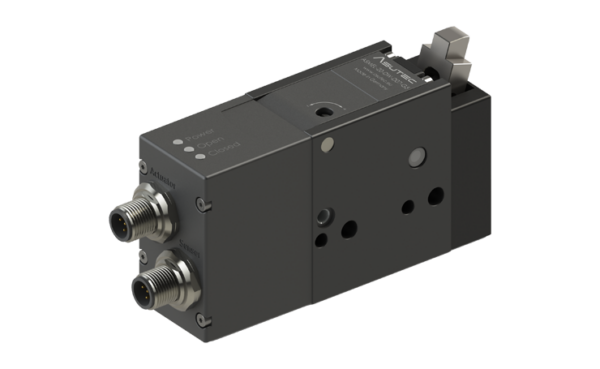

Stop module with damping ASMEL-20

For stopping and separating of one or more accumulated workpiece carriers a defined workpiece carrier stop surface.

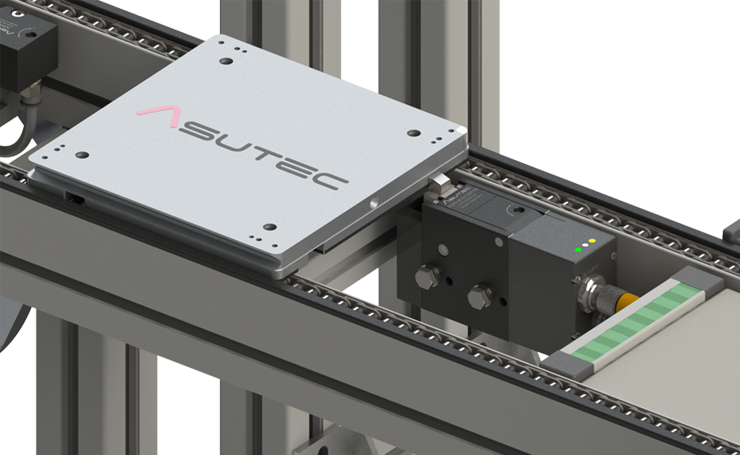

Made for small transfer systems like Bosch Rexroth TS1.

Technical data

EXECUTION AND WEIGHT

Device design: Basic housing made of hard anodized aluminium
and stop plate made of hardened steel.
Air damping system, adjustable with throttle screw.
Weights of the devices:
ASMEL-20-DW-D07-G5: 0,42 kg

CYCLE TIMES

Time to lower down: 0,1 s
Time to move up: 0,1 s
Minimum cycle time: 3 s

FUNCTION

The electrical separator ASMEL is a separator with damping. If a workpiece carrier strikes against the stop plate of the separator, the air chamber is compressed and the compressed air escapes through the opening gap of the adjusting screw. Thus, the workpiece carrier is gently damped to a stop. The damping is with air and can be finely adjusted via a throttle screw. If the workpiece pallet will be damped, the stop plate will be pushed in. The stop plate will stay in this position. There are no forces that would try to move the stop plate even the workpiece carrier is not pushing against the stop plate. The extension of the stop takes place during lowering and moving up the stop plate. The lowering and rising movement of the separator, as well as the extension of the stop plate is controlled by an internal mechanism. An integrated stepper motor performs the movements necessary for these functions.

POWER SUPPLY

24 Volt ± 15%, with reverse polarity protection.
If the voltage is higher or lower, the Power LED starts flashing in
0.25 second intervals. No more commands are executed.
If the voltage range is between 20,4 V and 27,6 V again, then the
Power LED is permanently on.
The separator is then ready for use again.

POWER CONSUMPTION

Residual current: 0,1 A
Rated current: 2,0 A
The current consumption of the separator takes place via the
supply voltage of the actuator-connection (pin 4) and pin 1 of the
sensor connection for the voltage supply of the sensors.

INPUT

Switching logic: PNP
Switching level: High-Level > 19 V Low-Level < 8 V

OUTPUTS

Switching logic: PNP
High-Level = supply voltage – 1,2 V ( approx. 19,2 V … 26,4 V)
Low-Level < 1 V Short circuit protection: No Max. output current per switching output: 30 mA

TEMPERATURE RANGE

Temperature range: + 5°C up to + 60°C (without accessories)

Variants

No items found

ASMEL-20-DW-D07-G5

Electrically controlled stop module with air damping for workpiece carrier load from 0.7 kg up to 10 kg
Double acting function, 7 mm lowering stroke
Connection G5: 5-pin connector M12x1 for actuators and sensors
