Corner stop module ASME-150

ASME-150 corner stop modules dampen and stop individual workpiece carriers at a section crossing on a lifting transverse unit.

Technical data

TYPE

Pneumatical damper. Housing hard-anodized aluminium. Stop plate hardened steel. Allowed workpiece carrier load up to 150 kg (see table).

WEIGHT DATA

All weight data relates to the total weight of the workpiece carrier
(pallet with material), not the maxial force.

MAX. RAM PRESSURE

Dependent on friction between workpiece holder and conveyor system,
workpiece carrier and stop plate, pneumatical pressure and ambient conditions.

TEMPERATURE RANGE

Standard version: -20°C to +80°C
-H = Heat resistant -20°C to +180°C
-E = Version with „-E’-query: +5°C to +60°C

DAMPING

The damping force is self­adjusting in a certain area but can also be adjusted on the top of the separator.
+ = increase damping force
– = reduce damping force

AIR CONNECTION with one connector

Pneumatic connection: M5
Working pressure: treated compressed air 4 ­ 8 bar
https://www.asutec.de/wp-content/uploads/2023/06/31-asme-ew.png

AIR CONNECTION with two connectors

Pneumatic connection: M5
Working pressure: treated compressed air 4 ­ 8 bar
https://www.asutec.de/wp-content/uploads/2023/06/32-asme-dw.png

SCOPE OF SUPPLY

The items will be delivered without accessories. Accessories can be freely selected according to the ambient conditions. All accessory parts supplied are mounted depending on customer request.

MAINTENANCE

No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.

Variants

No items found

ASME-150

Corner stop module with a standard stop plate for workpiece carrier loads from 5 kg up to 150 kg.
Two air connections for pneumatic extension and retraction of the stop plate.

ASME-150-H

Corner stop module with a standard stop plate for workpiece carrier loads from 5 kg up to 150 kg, heat-resistant up to 180°C.
Two air connections for pneumatic extension and retraction of the stop plate.

ASME-150-E

Corner stop module with a standard stop plate for workpiece carrier loads from 5 kg up to 150 kg.
Two air connections for pneumatic extension and retraction of the stop plate.
Option for querying the stop plate position (extended or retracted) by T-slot sensors.

ASME-150-100

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on the section profile of a longitudinal conveyor.
Mounting bracket suitable for example for Bosch Rexroth conveyor section ST 2/…-100 and ST 2/…-H.
One air connection for pneumatic extension of the stop plate.
Identical to the Bosch Rexroth damper DA 2/100-C.

ASME-150-101

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U2.
One air connection for pneumatic extension of the stop plate.
Identical to the Bosch Rexroth damper DA 2/100-B.

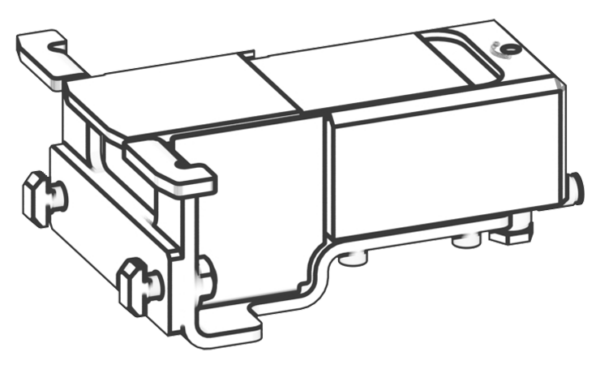

ASME-150-107

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U-H.
One air connection for pneumatic extension of the stop plate.
Identical to the Bosch Rexroth damper DA 2/100-E.

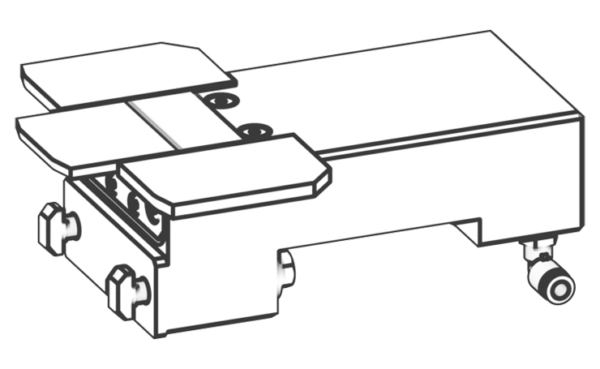

ASME-150-108

Corner stop module for workpiece carrier loads from 25 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U-H.
One air connection for pneumatic extension of the stop plate.
Identical to the Bosch Rexroth damper DA 2/150-E.

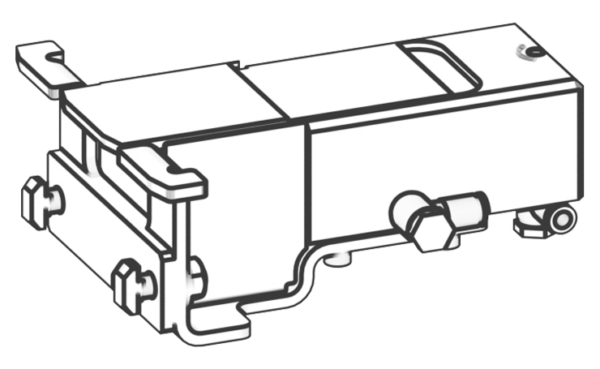

ASME-150-109

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U-H.
Similar to the Bosch Rexroth damper DA 2/100-E, but with two air connections
for pneumatic extension and retraction of the stop plate.

ASME-150-110

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U2.
Similar to the Bosch Rexroth damper DA 2/150-B, but with two air connections
for pneumatic extension and retraction of the stop plate.

ASME-150-111

Corner stop module with a flat stop plate, similar to the ASME-150-001,
for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U2.
Delivery including air connectors 14010004 and mounting bracket

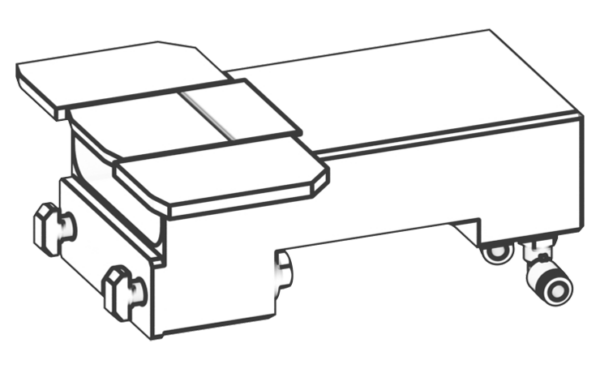

ASME-150-112

Corner stop module for workpiece carrier loads from 25 kg up to 150 kg.
Mounting on a lift-transverse-unit (HQ).
Mounting bracket suitable for example for Bosch Rexroth HQ 2/U-H.
Similar to the Bosch Rexroth damper DA 2/150-E, but with two air connections for pneumatic extension and retraction of the stop plate.

ASME-150-001

Corner stop module with a flat stop plate for workpiece carrier loads from 5 kg up to 150 kg.
Two air connections for pneumatic extension and retraction of the stop plate.

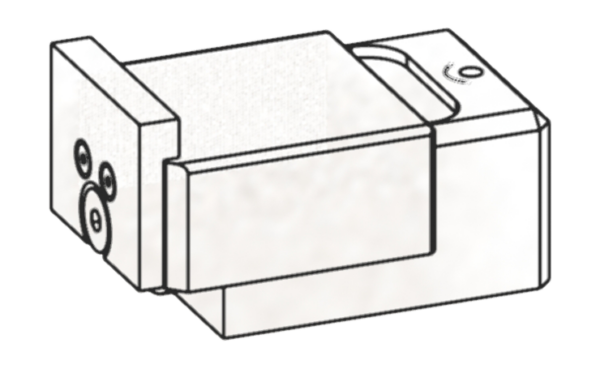

ASME-150-003

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
One air connection for pneumatic extension of the stop plate.
Similar to the ASME 150-100, but without the mounting bracket and without air connector.

ASME-150-006

Corner stop module for workpiece carrier loads from 5 kg up to 150 kg.
Mounting on the section profile of a longitudinal conveyor.
Mounting bracket suitable for example for Bosch Rexroth conveyor section ST 2/…-100 and ST 2/…-H.
Similar to the Bosch Rexroth damper DA 2/100-C and ASUTEC – ASME-150-100, but with two air connections for pneumatic extension and retraction of the stop plate.

ASME-150-011

Corner stop module with special stop plate for workpiece carrier loads from 5 kg up to 150 kg.
Two air connections for pneumatic extension and retraction of the stop plate.
Stop plate with two holes and counters for cap screws DIN 912 – M5.
