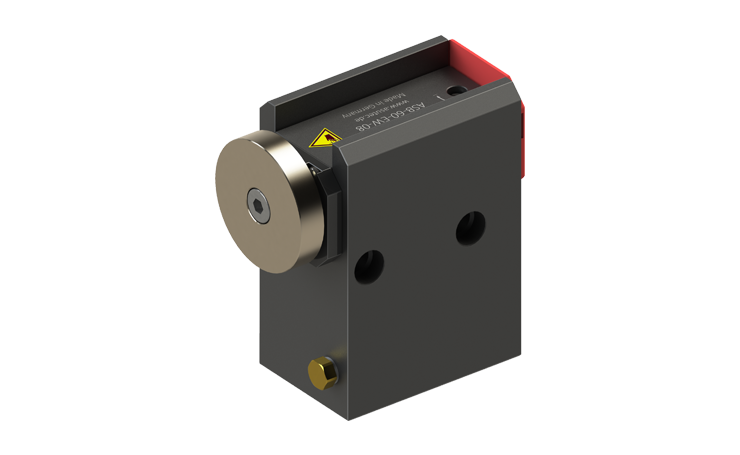

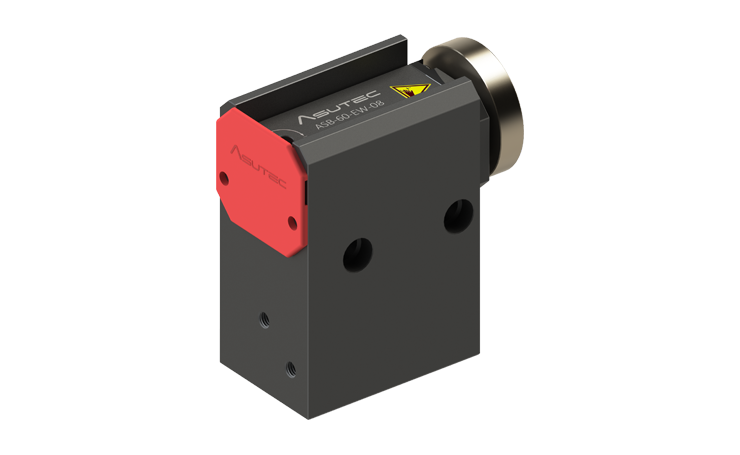

Acceleration module ASB-60-EW-08

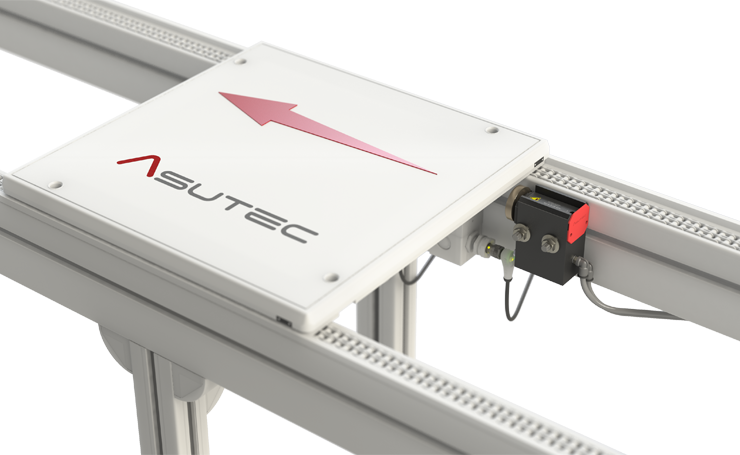

Acceleration modules ensure that workpiece carriers leave the processing station faster and the next processing cycle can start earlier. This reduces the cycle time. Acceleration modules are particularly effective on conveyor lines with accumulation roller chains.

Technical data

Type

Suitable for the Bosch Rexroth TS 2 and many more transfer systems.

Installation

The acceleration module is fastened using the side mounting holes for M8 screws.

Pneumatic connection

Connection threads: M5

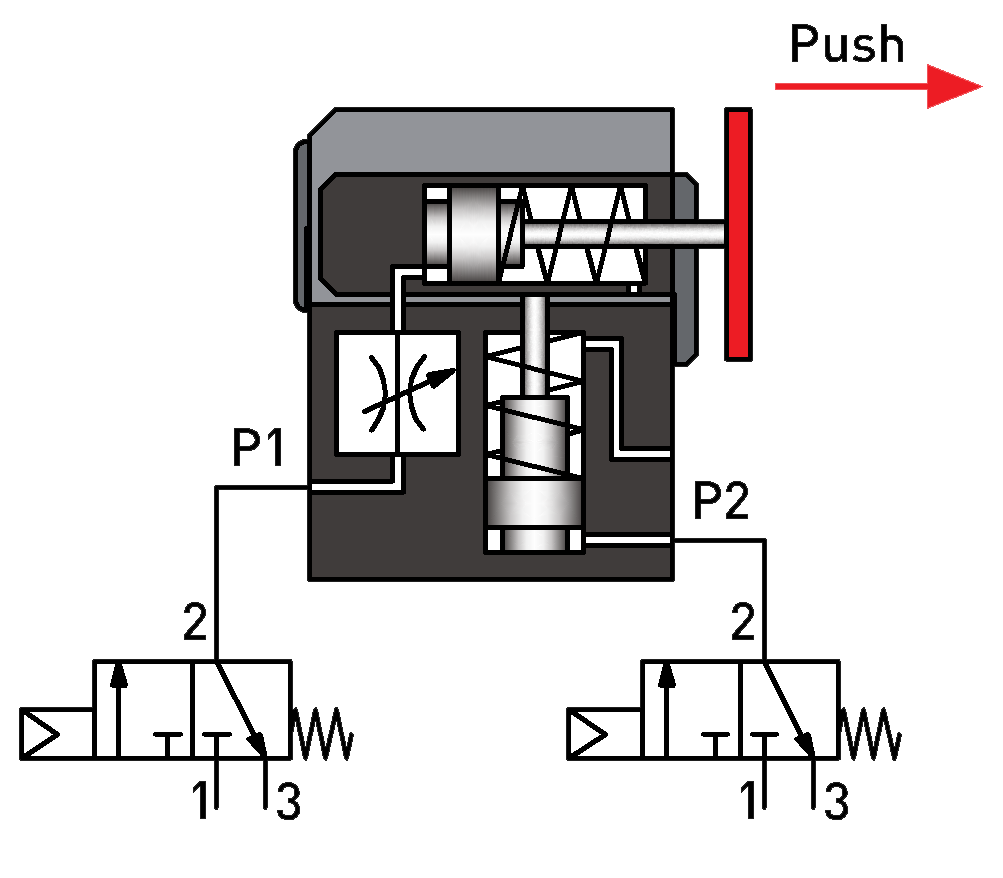

Functional scheme EW

Single acting:
The acceleration plate is held in its lowered position by a compression spring.
The air connection P2 is used to lift up the acceleration plate.
With the air connection P1, the acceleration plate of the module is extended (accelerated).
https://www.asutec.de/wp-content/uploads/2023/06/34-asb-60-ew-08.png

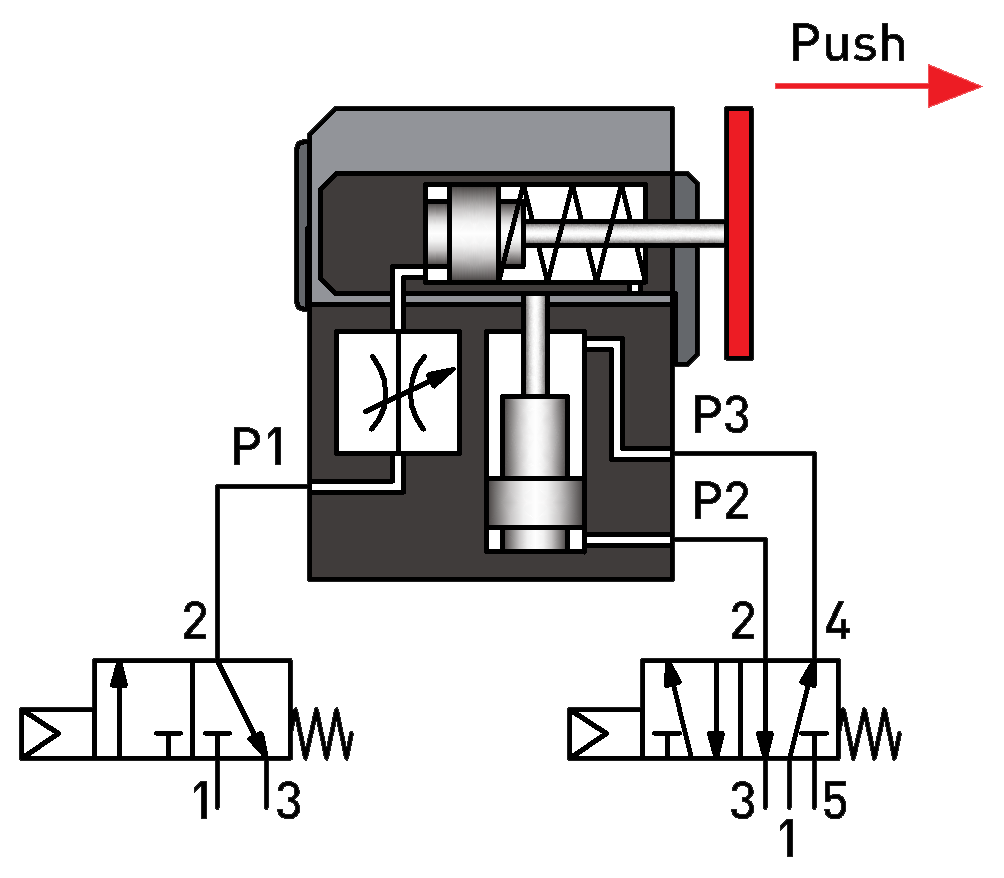

Functional scheme DW

Double acting:
There is no compression spring installed to hold the acceleration module in the upper or lowered position.
The air connection P2 is used to lift up the acceleration plate.
The air connection P3 is used to lower the acceleration plate.
With the air connection P1, the acceleration plate of the module is extended (accelerated).
https://www.asutec.de/wp-content/uploads/2023/06/35-asb-60-dw-08.png

Piston diameter and stroke

Piston diameter lowering piston: Ø34 mm
Piston rod diameter lowering piston: Ø20 mm
Lowering stroke: 8 mm
Piston diameter acceleration piston: Ø22 mm
Acceleration stroke: 18mm
The speed of the acceleration piston can be adjusted using a throttle screw on the top of the device.

Spring forces

Spring force with the EW variant for the lower and upper position:
F1 = 69 N; F2 = 100 N
Forces of the spring in the acceleration piston:
F1 = 12 N; F2 = 27 N

Query option

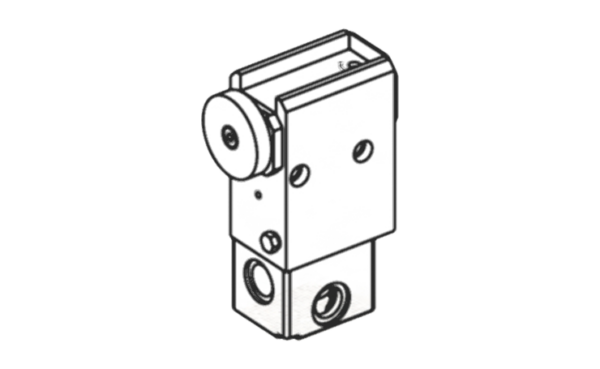

ASB-60-…-08-I
Version “-I” – upper and lower position can be detected with inductive sensor.

Temperature range

-20°C up to +80°C

Variants

No items found

ASB-60-EW-08

Accelerator module for workpiece carrier loads up to 60 kg
Single-acting function, 8 mm stroke
In the basic position of the stop plate is lowered and retracted

ASB-60-EW-08-002

Accelerator module for workpiece carrier loads up to 60 kg
Single-acting function, 8 mm stroke
In the basic position, the plate is in the upper position and retracted.

ASB-60-EW-08-I

Accelerator module for workpiece carrier loads up to 60 kg
Single-acting function, 8 mm stroke
Query for upper and lower positions with inductive sensor.
In the basic position of the stop plate is lowered and retracted

ASB-60-DW-08

Accelerator module for workpiece carrier loads up to 60 kg
Double-acting function, 8 mm stroke
In the basic position of the stop plate is lowered and retracted

ASB-60-DW-08-I

Accelerator module for workpiece carrier loads up to 60 kg
Double-acting function, 8 mm stroke
Query for upper and lower positions with inductive sensor.
In the basic position of the stop plate is lowered and retracted
