ASME-60-W-H
Corner stop module with angled stop plate for workpiece carrier loads from 1 kg up to 60 kg.
Heat-resistant up to 180°C.
Heat-resistant up to 180°C.
ASME-60-W-I-100
Corner stop module with angled stop plate for workpiece carrier loads from 3 kg up to 60 kg.
Two air connections for pneumatically extending and retracting the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from the side.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
Two air connections for pneumatically extending and retracting the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from the side.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
ASME-60-W-I-101
Corner stop module with angled stop plate for workpiece carrier loads from 3 kg up to 60 kg.
Two air connections for pneumatically extending and retracting the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from below.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
Two air connections for pneumatically extending and retracting the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from below.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
ASME-60-W-I-102
Corner stop module with angled stop plate for workpiece carrier loads from 3 kg up to 60 kg.
Similar to ASME-60-W-I-100, but with only one air connection for pneumatically extending the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from the side.
Delivery including air connector, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
Similar to ASME-60-W-I-100, but with only one air connection for pneumatically extending the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from the side.
Delivery including air connector, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
ASME-60-W-I-103
Corner stop module with angled stop plate for workpiece carrier loads from 3 kg up to 60 kg.
Similar to ASME-60-W-I-101, but with only one air connection for pneumatically extending the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from below.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
Similar to ASME-60-W-I-101, but with only one air connection for pneumatically extending the stop plate.
Possibility to query the damped or retracted stop plate position with the aid of an inductive sensor M12x1 from below.
Delivery including two air connectors, fastening set with bracket and safety cover.
The mounting set is suitable for the attachment to a lift transverse unit, for example Bosch Rexroth HQ 2/…
(Not suitable for HQ 2/U2 and HQ 2/…-H).
ASME-95
ASME-95 corner stop modules dampen and stop individual workpiece carriers at a section crossing on a lift-transverse unit.
Corner stop modules can also be used as dampers at the end of a track.
Corner stop modules can also be used as dampers at the end of a track.

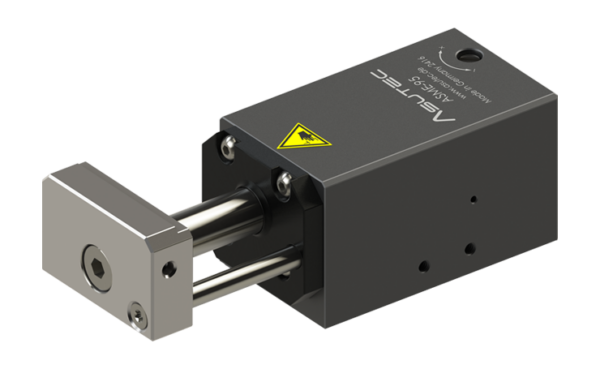

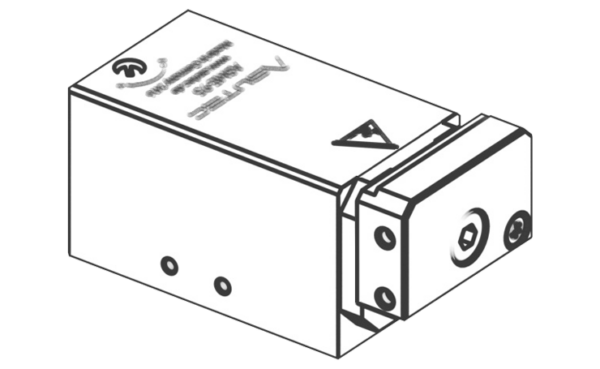

ASME-95
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
With flat stop plate
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
With flat stop plate

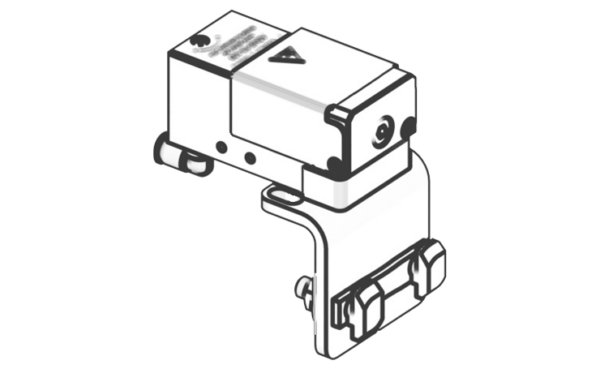

ASME-95-100
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
With flat stop plate, mounting bracket (suitable for side mounting to a section profile)
Delivery includes stop cover, mounting bracket, and air connections 14010004.
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
With flat stop plate, mounting bracket (suitable for side mounting to a section profile)
Delivery includes stop cover, mounting bracket, and air connections 14010004.

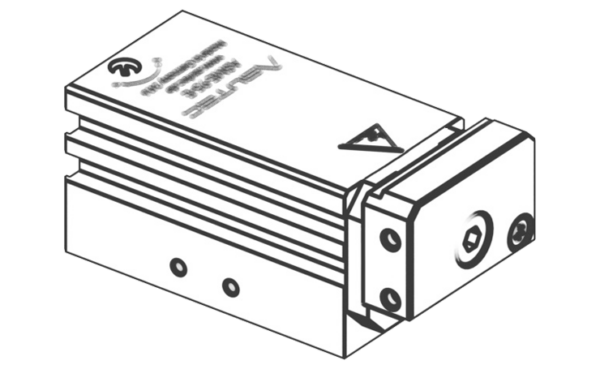

ASME-95-E
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the stop positions using T-slot magnetic field sensors.
With flat stop plate
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the stop positions using T-slot magnetic field sensors.
With flat stop plate

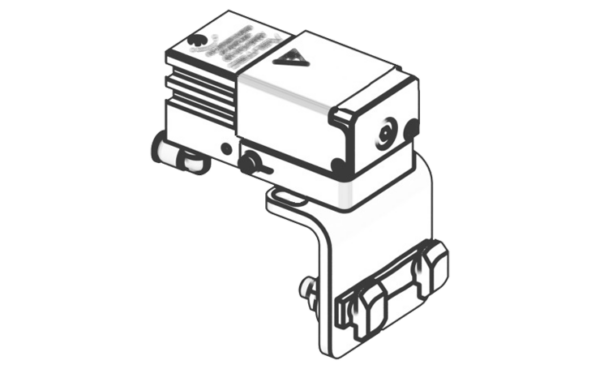

ASME-95-E-100
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the stop positions using T-slot magnetic field sensors.
With flat stop plate, mounting bracket (suitable for side mounting to a section profile)
Delivery includes stop cover, mounting bracket, and air connections 14010004.
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the stop positions using T-slot magnetic field sensors.
With flat stop plate, mounting bracket (suitable for side mounting to a section profile)
Delivery includes stop cover, mounting bracket, and air connections 14010004.

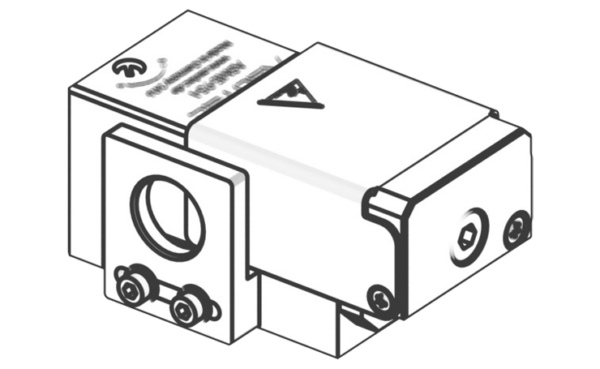

ASME-95-I
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the retracted stop position using an M12x1 inductive sensor.
With flat stop plate
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Option to query the retracted stop position using an M12x1 inductive sensor.
With flat stop plate

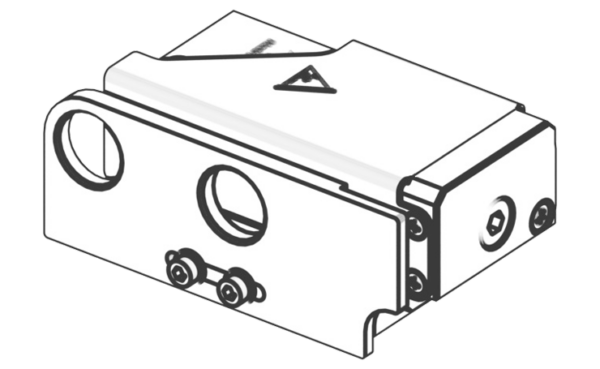

ASME-95-I-001
Corner stop module with 30 mm damping stroke
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Both stop positions (retracted and extended) can be monitored using inductive sensors M12x1.
With flat stop plate
For workpiece carrier loads from 3 kg up to 95 kg
Two air connection ports (extending and retracting the stop)
Both stop positions (retracted and extended) can be monitored using inductive sensors M12x1.
With flat stop plate
