ASMEL-1050

Home>Products>Stop modules>Stop modules with damping>Stop modules with damping el>ASMEL-1050

v=(m/min)	9	12	15	18	24	30
Mass WT (kg)	40 - 1050	40 - 850	40 - 630	40 - 520	40 - 340	40 - 250

The values, given in the table above for the permissible total weight of the accumulated workpiece carriers (WT) and the permissible conveying speed, apply with a belt friction of µ=0,07 between workpiece carrier and conveyor band and with the use of an ASUTEC standard stop.
The minimum WT weight of 40 kg specified in the working range table refers to the condition that the damping unit is unscrewed by 5.5 turns. In this state, the maximum workpiece carrier weight that can be stopped is reduced by half. When the damping unit is fully screwed in, the minimum WT weight is 75 kg. You can find detailed information about this in the operating instructions in Chapter 3.
To select the suitable separator, we recommend the use of our online product finder.
The specified weight range is composed of the minimum workpiece carrier weight mmin and the maximum workpiece carrier weight m_max.
Minimum propulsive force:
The minimum propulsive force can be calculated using the formula F_Rmin = m_min · g · µ.
For the ASMEL-1050 – F_Rmin = 27,5 N up to 51,5 N, depending on the screw-in depth of the damping unit. This minimum propulsive force must not be less than this, in order to ensure that the stop can be pushed by the WT into its damped (retracted) position.
Maximum propulsive force:
F_Rmax = 721 N. This maximum propulsive force may not be exceeded in order to ensure a sufficient damping effect and to ensure a sufficient force for lowering.
The specified value F_Rmax = 721 N is based on a coefficient of friction μ = 0.2 between the stop plate and the workpiece carrier.

Datasheet / Manual

You can find the STEP file below in the variants.

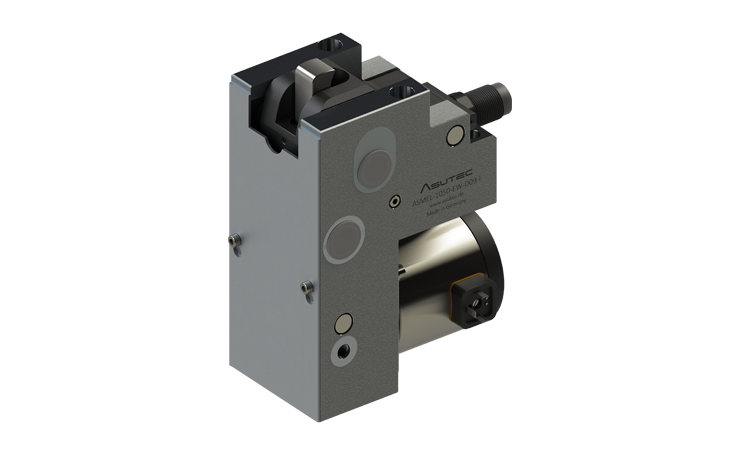

Stop module with damping ASMEL-1050

For stopping and separating of one or more accumulated workpiece carriers on a defined workpiece carrier stop surface.
The stoppers of the ASMEL-205/-525/-1050/-1850 series differ from the stoppers of the ASMEL-200/-500/-680/-1000 series in that the stop performs a pivoting movement when damping and that the damping unit can be screwed out. So the damping effect can be adjusted. This means that lighter workpiece carriers can be damped and stopped with less propulsive force. The damping end position is reached more reliable.

Technical data

TYPE

Electrical separating stop with self-adjusting damping unit
Aluminum basic housing
Stop plate made from hardened steel
Optimal damping of workpiece pallets up to a mass of 1050 kg

MAXIMUM RAM PRESSURE

Dependent of:
– the friction between piece carrier and the transfer system.
– the friction between work piece carrier and the stop plate.
– the position of the work piece carrier stop surface.
– the ambient conditions (dust).

ELECTRICAL DATA

Voltage: 24 VDC
Duty cycle: 100%
Current consumption: 1.82 A

Function EW - single acting

Lowering (opening) Electrically
Moving up (closing) vai spring force

INDUCTIVE POSITION DETECTION

Query the following states with inductive sensors M18x1 in clamp holders M24x1.5:
– Stop plate in stopping position (upper position)
– Stop plate in damping-end-position

TEMPERATURE RANGE

+5°C up to + 60°C

SCOPE OF DELIVERY

The devices are delivered without accessories.
The accessories can be freely selected and adapted to the ambient conditions.
All accessories supplied are installed at the customer’s request.

MAINTENANCE

No maintenance is required. The area around the stop plate must be clean and exempt from swarf to guarantee an exactly positioning of the workpiece carrier.

Too many different variations? - Find the suitable product!

Product Finder

Variants

No items found

ASMEL-1050-EW-D09-I

Stop module with damping for workpiece carrier loads from 40 kg up to 1050 kg
Single-acting function, by a single stroke control solenoid
9 mm lowering stroke via swivel joint
Query for upper position with inductive sensor
Query for stop plate in damped position with inductive sensor
Connection with rectangular connector
